Description

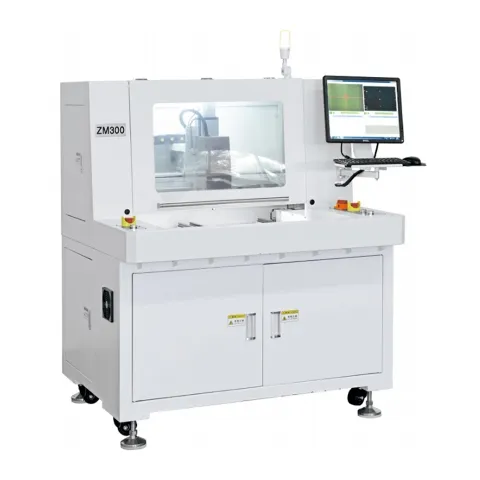

The ZM300 Offline PCB Depaneling Machine is a high-performance, standalone solution designed for precise and efficient PCB separation. Built on a four-axis motion control platform, it features a high-speed, high-resolution CCD camera for visual alignment and calibration, with barcode recognition capabilities included as standard.
A high-precision spindle operating at 60,000 RPM enables fast and accurate cutting, while the dual-station platform supports one-in, one-out PCBA handling to minimize waiting time and maximize throughput.
The system supports quick and intuitive programming, including full-sheet scanning and offline program editing, which significantly reduces line changeover times and enhances production flexibility.
Equipped with servo motors, precision ground lead screws, and linear guide rails, the ZM300 delivers stable, secure, and high-precision depaneling performance, making it ideal for modern electronics manufacturing environments.
Application Cases
Specification
| Model | ZM300 | ZM300L |
|---|---|---|
| Effective Cutting Area | Upper suction: X350 × Y380mm Lower suction: X290 × Y320mm |
Upper suction: X450 × Y600mm Lower suction: X400 × Y570mm |
| Cutting Function | Straight line, L-shape, U-shape, circle, arc, irregular shapes | Same as ZM300 |
| Work Table | Dual table | Dual table |
| Repetition Accuracy | ±0.02mm | ±0.02mm |
| Cutting Accuracy | ±0.05mm | ±0.05mm |
| Max. Moving Speed | X: 1000 mm/s, Y1/Y2: 1000 mm/s, Z: 300 mm/s | X: 1000 mm/s, Y1/Y2: 1000 mm/s, Z: 500 mm/s |
| Max. Travel Range | X: 750 mm, Y1/Y2: 510 mm, Z: 100 mm | X: 950 mm, Y1/Y2: 880 mm, Z: 100 mm |
| Spindle Speed | Adjustable up to 60,000 RPM | Same as ZM300 |
| Tool Change Mode | Manual (standard) / Automatic (optional) | Same as ZM300 |
| Cutting Speed | Adjustable 1–100mm/s | Same as ZM300 |
| Operation Interface | Windows 10 | Windows 10 |
| Program Teaching Method | CCD color vision teaching input | Same as ZM300 |
| Program Backup | USB interface | Same as ZM300 |
| Control System | PC + motion control card | Same as ZM300 |
| XYZ Drive System | AC servo motor | AC servo motor |
| Applicable Cutter Size | Ø0.5–3.0mm | Ø0.5–3.0mm |
| Power Supply | AC220V 50/60Hz 2KW | AC220V 50/60Hz 2KW |
| Air Supply | 0.6Mpa | 0.6Mpa |
| Machine Dimension (W×L×H) | 1240 × 1050 × 1450mm | 1380 × 1591 × 1441mm |
| Machine Weight | 500kg | 700kg |
| Dust Collector Power | 4HP / 3HP / 5HP | Same as ZM300 |
| Dust Collector Size (W×L×H) | 600×500×1300mm / 600×600×1600mm / 813×925×1800mm | Same as ZM300 |
| Dust Collection Mode | Upper suction / Lower suction | Same as ZM300 |
| Dust Collector Power Supply | AC220V/380V 50/60Hz, 3-phase | Same as ZM300 |
| Dust Collector Weight | 125kg / 165kg / 290kg | Same as ZM300 |
What is the maximum spindle speed of the ZM300?
The high-precision spindle operates at 60,000 RPM, ensuring fast and accurate PCB cutting.
Does the machine support barcode recognition?
Yes, the CCD camera comes standard with barcode recognition capabilities for improved traceability.
How does the dual-station platform improve efficiency?
The one-in, one-out setup allows simultaneous board loading and cutting, reducing idle time and increasing throughput.
What programming options are available?
The machine supports full-sheet scanning, offline programming, and quick line changeover, simplifying operation and setup.
What kind of motion control system is used?
The ZM300 utilizes a four-axis motion control platform with servo motors, ground lead screws, and linear guide rails for precise and stable movement.
Can it handle different PCB sizes?
Yes, users can program the system to support a variety of PCB formats, accommodating flexible production needs.
How does the CCD vision system improve cutting accuracy?
The high-speed, high-resolution CCD camera automatically aligns and calibrates each board, ensuring precise and repeatable cuts.
Is the ZM300 suitable for high-volume production?
Yes, with dual-station handling, quick programming, and a high-speed spindle, the ZM300 is optimized for efficient, high-throughput PCB depaneling.
