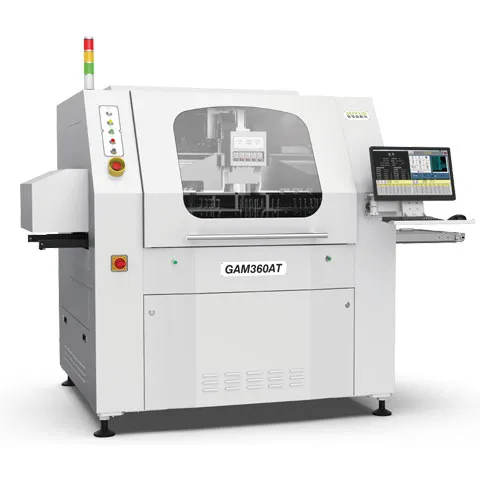

GAM360AT In-Line Automatic PCB Depaneling Machine

Description

The GAM360AT PCB Separator is a high-performance, fully automated depaneling solution designed to deliver precise, stable, and efficient PCB separation in modern electronics manufacturing environments. From automatic loading and vision-guided positioning to high-speed routing and intelligent unloading, the system streamlines the entire depaneling workflow while maintaining consistent quality.

A single integrated workstation handles both PCB placement and cutting operations, reducing idle time and improving overall productivity. The advanced CCD vision system with autofocus automatically detects panel position and compensates for offsets, eliminating manual focus adjustments and ensuring repeatable cutting accuracy.

Equipped with a high-speed, ESD-safe spindle and an automatic tool-change mechanism, the GAM360AT minimizes cutting stress while protecting sensitive PCBAs from static-related damage. A standard dust collection system with real-time monitoring and alarm functions ensures efficient debris removal and a clean working environment.

To extend consumable life, the system incorporates SEPRAYS’ patented segmented flexible cleaning brush, allowing staged use of the milling tool and significantly increasing tool lifespan. For higher production demands, dual-spindle models such as GAM320AD, GAM330AD, and GAM340AD are available to further enhance throughput.

Optional configurations include a clamping module, laser height inspection, barcode reading, milling tool diameter detection, and customized MES integration, enabling full traceability and smart factory connectivity.

Choose the GAM360AT PCB Separator for a scalable, reliable, and precision-driven depaneling solution.

Key Features

Laser Height Measurement

An optional laser height inspection module verifies correct PCBA placement before cutting, preventing misalignment or damage caused by improper positioning or residual board fragments.

Quick Line Changeover

Stored programs can be recalled instantly, reducing setup errors and enabling fast, efficient line changeovers for mixed-model production.

High System Utilization

Backed by over 30 years of independently developed software, the system delivers long-term stability and reliability, minimizing unexpected downtime and defect risks.

Rigid Mechanical Structure

The one-piece welded frame and cast-aluminum construction provide excellent rigidity and resistance to oxidation, deformation, and positional drift—ensuring long-term precision.

Advanced Dust Control

High-power dust extraction with HEPA filtration effectively removes cutting debris. A negative pressure monitoring system continuously checks the dust collection status for safe operation.

Patented Floating Brush

The floating brush design (Patent No. ZL201721620742.X) enhances dust removal efficiency while protecting the milling tool and PCB surface.

Centralized Control & Remote Monitoring

Optional centralized control enables real-time equipment monitoring via an IP network, with remote access available through mobile devices for smarter equipment management.

Application Cases

The GAM360AT in-line, ultra-large PCB splitter can be connected to loaders, unloaders, and PCB collectors at the front and rear ends.

Specification

Model	GAM360AT
Valid cutting size	600*500mm
Loading method	Track delivery
Unloading method	Belt delivery or track delivery
Transfer method	Vacuum nozzle absorption
Movement direction	Left to right or right to left
Cutting function	Tweening to a straight line, L shape, U shape, Circle, Arc
Process table	Single table
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec, Z: 800mm/sec
Max’s moving trip	X: 1040mm, Y: 655mm, Z: 90mm
Spindle’s speed	MAX: 60000rpm (Adjustable)
Tool change type	Auto tool change
Cutting speed	1-100mm/s (Adjustable)
Operating system	Windows 10
Program teaching mode	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 4KW Single-phase
Pneumatic pressure requirement	0.6MPa, 200L/min
Dimensions(W*D*H)	2309*1606*1717mm
Weight	930kg
Collector	TS300L

Q1: What type of PCB applications is the GAM360AT suitable for?

The GAM360AT is ideal for a wide range of PCB depaneling applications, including compact boards, high-density PCBAs, and precision electronics requiring consistent, low-stress separation.

Q2: Does the machine require manual focus adjustment for vision alignment?

No. The CCD vision system features autofocus, automatically adjusting to PCB height variations and ensuring accurate alignment without manual intervention.

Q3: How does the GAM360AT protect PCBAs from static damage?

The machine uses an ESD-safe high-speed spindle combined with controlled tool-change operations to minimize static buildup during routing.

Q4: Can the GAM360AT support quick product changeovers?

Yes. Stored cutting programs can be recalled quickly, allowing fast line changeovers without complex re-programming or fixture adjustments.

Q5: Is dust effectively controlled during the depaneling process?

Absolutely. The system includes a high-power dust collector with HEPA filtration, negative pressure monitoring, and alarm functions to ensure efficient dust removal.

Q6: Can this machine be integrated with MES systems?

Yes. Customized MES integration is available as an option, enabling real-time data collection, traceability, and centralized production management.

Q7: How does the patented flexible brush benefit production?

The segmented flexible brush allows staged use of the milling tool, extending tool life while maintaining clean cutting conditions and consistent quality.

Q8: Are higher-throughput configurations available?

Yes. For increased capacity, SEPRAYS offers dual-spindle versions such as GAM320AD, GAM330AD, and GAM340AD to meet high-volume production requirements.
