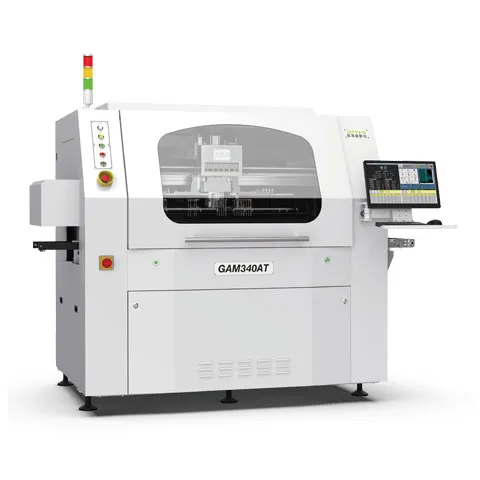

GAM340AT In-Line Automatic PCB Router

Description

The GAM340AT PCB Router delivers fully automated PCB depaneling—from loading and precision cutting to unloading—streamlining the entire production process. Engineered for modern electronics manufacturing, it offers flexible solutions to meet diverse production requirements.

Dual worktables enable simultaneous board loading and cutting, significantly improving throughput. The advanced CCD vision alignment system with autofocus ensures accurate positioning by detecting offsets in real time, eliminating the need for manual adjustments.

A high-speed spindle with automatic tool-change minimizes cutting stress and static-related PCBA damage while maintaining high precision. The patented segmented flexible brush extends milling tool life and keeps operations clean and efficient.

Optional modules—including clamping systems, laser height detection, barcode readers, and MES integration—support intelligent manufacturing workflows. Dual-spindle configurations, such as GAM320AD, GAM330AD, and GAM340AD, are available for higher throughput applications.

Key Features

• High-Speed Cutting Spindle
  Imported, high-precision spindle with speeds up to 80,000 rpm.
  Low cutting stress, smooth board edges, and consistent precision.

• Quick Line Changeover
  Recall existing programs to avoid fixture errors, enabling fast program recall and efficient line changeovers.

• High Utilization Rate
  Over 30 years of independent software development ensure stable, reliable operation and eliminate board defects caused by software bugs.

• Exclusive Structural Design
  One-piece welded frame for stability and high strength.
  Cast aluminum construction resists oxidation, deformation, and shifting, ensuring long lifespan and guaranteed precision.

• Advanced Dust Collection
  High-power dust collector with HEPA-rated filtration.
  The negative pressure detector continuously monitors dust collection.
  Patented floating brush (ZL201721620742.X) enhances dust capture efficiency.

• Centralized Control System Management
  Optional networked central control for real-time monitoring.
  Remote device management via mobile app for convenient oversight.

Application Examples

The GAM340AT in-line PCB splitter is suitable for slitting large-sized PCBs, such as those used for PCs, servers, and other applications.

Specification

Model	GAM340AT
Valid cutting size	450*420mm
Loading method	Track delivery
Unloading method	Belt delivery or track delivery
Transfer method	Vacuum nozzle absorption
Movement direction	Left to right or right to left
Cutting function	Tweening to straight line, L shape, U shape, Circle, Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec, Z: 800mm/sec
Max’s moving trip	X: 1138mm, Y: 597mm, Z: 90mm
Spindle’s speed	MAX: 60000rpm (Adjustable)
Tool change type	Auto tool change
Cutting speed	1-100mm/s (Adjustable)
Operating system	Windows 10
Program teaching mode	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 4KW Single-phase
Pneumatic pressure requirement	0.6MPa, 200L/min
Dimensions(W*D*H)	2222*1567*1706mm
Weight	1000kg
Collector	TS300L

Q1: What types of PCBs can the GAM340AT handle?

It can process PCBs of various shapes, sizes, and thicknesses, including dense or high-component boards, while minimizing mechanical stress.

Q2: How does the CCD vision system ensure cutting accuracy?

The high-speed CCD with autofocus detects board positioning offsets in real time, automatically correcting alignment to ensure precise, repeatable cuts.

Q3: How does the spindle protect PCBAs?

The high-speed spindle with automatic tool-change minimizes cutting stress and dissipates static, reducing the risk of component damage.

Q4: What is the function of the segmented flexible brush?

The patented segmented brush prolongs milling tool life and enhances dust collection, maintaining clean, uninterrupted operation.

Q5: Can the GAM340AT integrate into existing production lines?

Yes. Optional modules such as clamping systems, laser height detection, barcode readers, and MES integration enable seamless connection to automated SMT lines.

Q6: How does the dual-worktable design improve productivity?

Dual worktables allow simultaneous loading and cutting, reducing idle time. They can also be combined into a single platform to handle oversized boards efficiently.

Q7: How does the machine ensure a clean working environment?

Equipped with high-power dust collectors, HEPA filters, negative pressure monitoring, and a floating brush, the system maintains a dust-free PCB surface and production area.

Q8: Are there options for remote monitoring and control?

Yes. An optional centralized control system allows real-time monitoring via network IP, and remote device management is possible through a mobile app.
