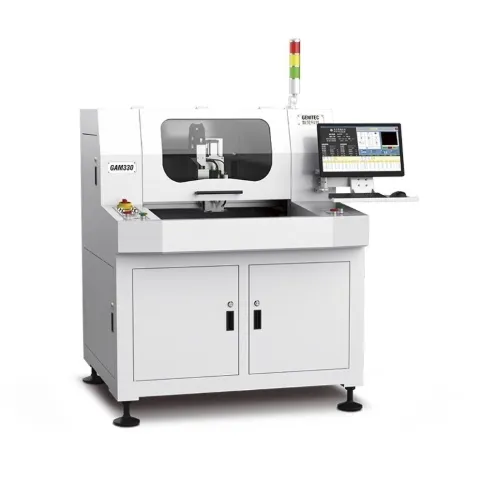

GAM330 High-Precision Automatic PCB Router

Description

The GAM330 Automatic PCB Router is engineered for high-speed, high-precision depaneling, meeting the rigorous demands of modern electronics manufacturing. Equipped with a high-speed CCD vision alignment system, it delivers accurate positioning and consistently precise cuts, ensuring stable and efficient PCB separation.

The high-speed spindle with automatic tool-change functionality eliminates manual intervention, reducing downtime and operator errors while maintaining superior board quality. Driven by precision ball screws, the worktable ensures smooth, fast, and precise movement, accommodating both thin and thick PCBs with consistent results.

Dual worktables allow simultaneous loading and routing, minimizing idle time, and can also be combined into a single platform to handle oversized boards efficiently. Optional top or bottom vacuum collectors maintain a dust-free PCB surface, supporting downstream processes and improving overall production cleanliness.

To meet diverse production requirements, the GAM330 offers a variety of software and hardware options, including safety light curtains, milling tool diameter detection, automatic top covers, barcode reading, and MES system integration, making it a scalable and adaptable solution for any SMT line.

💡 Trusted by leading global manufacturers, the GAM330 Automatic PCB Router enhances productivity, accuracy, and operational flexibility.

Key Features

• Automatic Tool-Change Spindle
  Reduces manual tool replacement, minimizes downtime, and prevents operator errors.

• High-Speed CCD Vision Calibration System
  Provides precise alignment and cutting; supports cutting path simulation, full-board scanning, and offline programming for efficient setup.

• Precision Screw-Driven Worktable
  Ensures fast, smooth, and accurate movement; suitable for both thin and thick PCBs.

• Dual Worktable Design
  Enables simultaneous loading and routing, or can be combined into a single platform for large boards.

• Dust-Free Operation
  Optional top or bottom vacuum collectors maintain a clean PCB surface and work environment.

• Milling Cutter Management
  Detects cutter slippage, breakage, and height deviation; supports optional cutter diameter detection and usage logging.

• Maintenance Reminders
  Configurable reminders for spindle maintenance, tool replacement, and dust filter cleaning.

• Flexible Software & Security
  Four-level access control, optional fingerprint login, and robust software developed over 30 years ensure reliable operation.

• Optional Add-Ons
  Safety light curtains, automatic top covers, barcode readers, MES integration, and other customizable modules for scalable, smart factory operation.

Application Examples

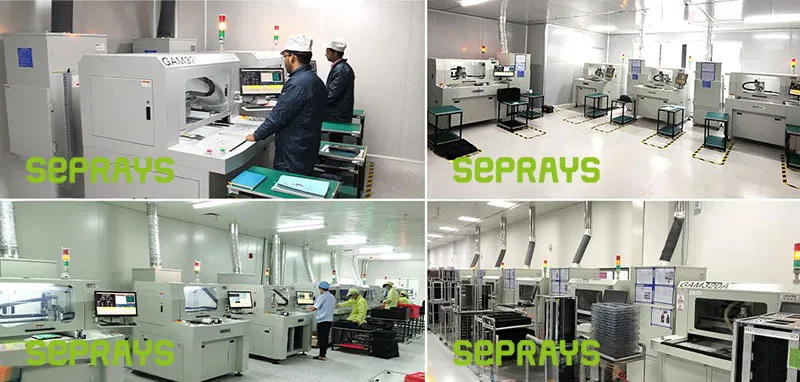

Suitable for depaneling small, multi-connected boards for mobile phones, automotive electronics, and CCDs. Larger sizes are suitable for larger circuit boards such as digital TVs and servers.

Specification

Model	GAM330
Valid cutting size	300*350mm
Cutting function	Tweening to Straight line, L shape, U shape, Circle, Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY:1000mm/s, Z:600mm/s
Max’s moving trip	X:800mm  Y:490mm  Z:90mm
Spindle speed	MAX: 60000rpm (Adjustable)
Tool change type	Auto tool change
Milling tool detection	Auto router bit detector
Cutting speed	0~100mm/s (Adjustable)
Operation system	Windows10
Program teaching mode	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ-axis driving mode	AC Servo motor
Size of milling tool	0.8~3.0mm
Voltage/Power requirement	AC220V 50/60Hz 2.2KW Single-phase
Pneumatic pressure requirement	0.6Mpa，50L/min
Dimensions(W*D*H)	1220*1150*1458mm
Weight	480KG
Dust collector	TS200

Q1: What types of PCBs can the GAM330 handle?

It can process PCBs of various shapes and thicknesses, including large or high-density boards, while minimizing stress on sensitive components.

Q2: How does the CCD vision system improve cutting accuracy?

The high-speed CCD alignment detects board positions and compensates for offsets, ensuring precise and repeatable cuts.

Q3: How does the auto tool-change spindle help production?

It eliminates manual tool replacements, reduces downtime, and prevents operator errors, improving overall production efficiency.

Q4: Can the worktables accommodate large or multiple PCBs?

Yes. Dual worktables enable simultaneous loading and cutting, and they can also be combined into a single large platform for oversized boards.

Q5: How does the GAM330 maintain a clean production environment?

Optional top and bottom vacuum collectors remove dust during cutting, ensuring a clean PCB surface and smooth downstream processing.

Q6: How is cutter performance monitored?

The system detects cutter slippage, breakage, and height deviation, and optional features track cutter diameter and usage for better tool management.

Q7: What optional features improve integration and automation?

Available options include safety light curtains, automatic top covers, barcode readers, MES integration, and other software/hardware modules.

Q8: How reliable is the software and system operation?

With over 30 years of independently developed software, the GAM330 ensures stable, high-utilization operation and minimizes errors that could cause board failures.
