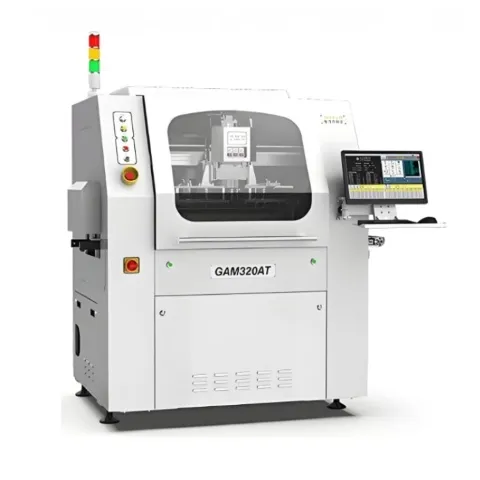

GAM320AT In-Line Automatic PCB Router

Description

The GAM320AT PCB Router delivers fully automated PCB depaneling—from loading and precision cutting to unloading—significantly enhancing production efficiency and workflow. Designed for modern electronics manufacturing lines, it accommodates a wide range of process requirements with customizable options.

Equipped with a high-resolution CCD vision system, the GAM320AT ensures precise alignment and position correction for every board, guaranteeing accurate and repeatable cuts. Its high-speed spindle features automatic tool-change functionality, minimizing static-induced damage to PCBAs and reducing downtime.

A patented segmented cleaning brush maximizes milling tool lifespan and performance, supporting longer, uninterrupted production runs. Optional modules include a clamping system for carriers, laser height verification, barcode reading, milling tool diameter monitoring, and MES integration.

💡 For high-volume applications, dual-spindle versions such as GAM320AD, GAM330AD, and GAM340AD are also available to increase throughput.

Key Features

• Automated Loading, Cutting, and Unloading
  Streamlines the PCB depaneling process and improves line efficiency.

• CCD Vision Alignment System
  A high-resolution vision system ensures accurate board positioning and precise cutting.

• High-Speed Precision Spindle with Auto Tool-Change
  Reduces static damage and supports continuous, reliable operation.

• Patented Segmented Cleaning Brush
  Extends milling tool life and ensures consistent cutting performance.

• Flexible Optional Modules
  Clamping systems, laser height detection, barcode reader, tool diameter monitoring, and MES integration for smart factory applications.

• Dual-Spindle Options
  Available for high-throughput production, supporting GAM320AD, GAM330AD, and GAM340AD configurations.

Specification

Model	GAM320AT
Valid cutting size	350*300mm
Loading method	Track delivery
Unloading method	Belt delivery or track delivery
Transfer method	Vacuum nozzle absorption
Movement direction	Left to right or right to left
Cutting function	Tweening to straight line, L shape, U shape, Circle, Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec, Z: 800mm/sec
Max’s moving trip	X: 790mm, Y: 440mm, Z: 90mm
Spindle’s speed	MAX: 60000rpm (Adjustable)
Tool change type	Auto tool change
Cutting speed	1-100mm/s (Adjustable)
Operating system	Windows 10
Program teaching mode	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 4KW Single-phase
Pneumatic pressure requirement	0.6MPa, 155L/min
Dimensions(W*D*H)	1949*1192*1705mm
Weight	750kg
Collector	TS200L

Q1: What types of PCBs can the GAM320AT handle?

It can process PCBs of various shapes and sizes, including high-density and compact boards, while minimizing stress on sensitive components.

Q2: How does the CCD vision system improve cutting accuracy?

The high-resolution CCD system detects PCB position and automatically corrects alignment, ensuring precise and repeatable cuts.

Q3: How does the spindle protect PCBA components?

The high-speed spindle with automatic tool-change reduces static electricity and minimizes mechanical stress during routing.

Q4: What is the purpose of the segmented cleaning brush?

The patented segmented brush maximizes milling tool usage, prolonging its lifespan and maintaining consistent cutting quality.

Q5: Can the GAM320AT be integrated into automated production lines?

Yes. Optional MES connectivity, clamping systems, and barcode reading allow seamless integration into modern SMT lines.

Q6: How does the dual-spindle configuration enhance production?

Dual-spindle models, such as GAM320AD, GAM330AD, and GAM340AD, increase throughput for high-volume PCB routing applications.

Q7: Are there options for additional process monitoring?

Yes. Optional modules include laser height verification and milling tool diameter monitoring for improved process control and reliability.

Q8: How does the GAM320AT improve overall production efficiency?

By automating loading, cutting, and unloading, reducing setup and downtime, and extending tool life, the GAM320AT optimizes throughput and operational efficiency.
