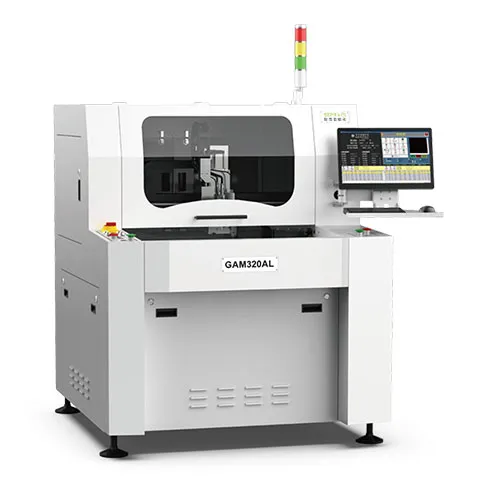

GAM320AL In-Line Automatic PCB Router

Description

The GAM320AL PCB Router is engineered for precision, flexibility, and high-throughput production. Designed to accommodate a wide variety of PCB shapes, it features a high-speed CCD vision alignment system to ensure accurate positioning and minimal cutting errors.

Equipped with a precision spindle, the router minimizes mechanical stress during milling, protecting sensitive components and maintaining superior board quality. Dual worktables allow simultaneous loading and routing, or can be merged into a single large platform for oversized boards—reducing idle time and maximizing line efficiency.

The GAM320AL is highly adaptable, with optional features such as dual spindles, upper or lower dust collectors, broken tool detection, MES integration, and more, allowing seamless integration into modern SMT production lines.

Trusted by Fortune 500 companies worldwide, the GAM320AL combines high performance, reliability, and operational flexibility for demanding PCB manufacturing environments.

Key Features

• Operation Screen
  Intuitive interface for panel separation and spindle/tool parameter settings. Displays milling efficiency, tool usage, and operation logs. Includes tool life management, maintenance alerts, and spindle speed configuration.

• CCD Vision Automatic Calibration System
  High-speed CCD system with cutting path simulation for accurate programming. Full-sheet scanning and offline programming improve path editing efficiency.

• Offline Programming & Full-Sheet Scanning
  Edit cutting programs offline and import directly to the machine. Automatic cutting path recognition and selectable cutting line colors simplify setup and programming.

• High-Speed Precision Spindle
  Imported high-precision spindle delivers smooth edges and low cutting stress. Spindle speed up to 80,000 rpm ensures superior cutting quality.

• Maintenance Reminder
  Configurable reminders for spindle checks, tool replacement, and dust filter cleaning maintain high uptime.

• Quick Line Change
  Recall existing programs to avoid fixture errors and enable rapid changeovers, improving production flexibility.

Specification

Model	GAM320AL
Valid cutting size	450*500mm
Cutting function	Tweening to straight line, L Shape, U Shape, Circle, and Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec， Z: 600mm/sec
Max’s moving trip	X: 1010mm, Y: 570mm, Z: 90mm
Spindle’s speed	MAX: 60000rpm (Adjustable)
Cutting speed	1-100mm/s (Adjustable)
Operation system	Windows10
The program teaching method	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling bit	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 2.2KW Single-phase
Pneumatic pressure requirement	0.6MPa, 75L/min
Weight(W*D*H)	1445*1670*1550mm
Weight	510KG
Dust Collector	TS200L

Application Cases

Q1: What types of PCBs can the GAM320AL process?

It supports virtually any PCB shape, including high-density and irregular boards, while minimizing stress on sensitive components.

Q2: How does the CCD vision system enhance cutting accuracy?

The high-speed CCD alignment detects offsets and automatically adjusts the cutting path, ensuring precise and repeatable results.

Q3: How do dual worktables improve efficiency?

Dual tables allow simultaneous board loading and cutting, reducing idle time. You can also combine them into a single platform for larger or more complex boards.

Q4: Is the spindle safe for delicate components?

Yes. The precision spindle applies minimal stress during routing and is ESD-safe, protecting sensitive PCBA components.

Q5: How does offline programming benefit production?

Programs can be prepared and edited offline, then imported directly to the machine. Full-board scanning and automatic path recognition improve setup speed and accuracy.

Q6: How is maintenance managed?

The system provides reminders for spindle checks, tool replacement, and dust filter cleaning, helping prevent downtime and extend tool life.

Q7: Can the GAM320AL integrate with automated SMT lines?

Yes. Optional MES connectivity, dual spindles, dust collectors, and safety modules enable seamless integration with modern production lines.

Q8: What optional features enhance operational flexibility?

Available options include dual spindles, upper/lower dust collectors, broken tool detection, MES integration, and customizable workflow settings for high-efficiency PCB routing.
