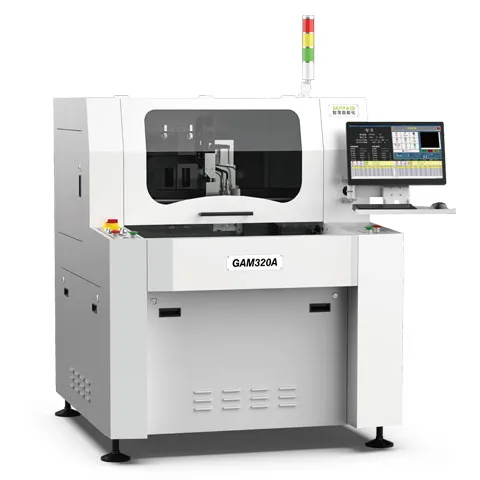

GAM320A High-Precision Automatic PCB Router Machine

Description

The GAM320A Automatic PCB Router is a high-precision, flexible depaneling solution designed for diverse PCB applications. Equipped with a precision spindle, it minimizes cutting stress while maintaining exceptional accuracy, safeguarding sensitive components during processing.

A high-speed CCD vision automatic calibration system ensures precise alignment and repeatable cutting, while dual worktables allow simultaneous board loading and separation, significantly reducing idle time. For larger or complex PCBs, the tables can be merged into a single workspace for added flexibility.

The machine operates on Windows 10 with a user-friendly interface, providing stability, easy operation, and intuitive program management. Optional upgrades—including safety light curtains, broken tool detection, spindle diameter monitoring, upper or lower dust collectors, full MES integration, and dual spindle operation—allow the GAM320A to adapt to modern high-volume SMT production environments.

Key Features

• Operation Screen
  Simplified settings for panel separation and spindle/tool parameters. Displays cutting efficiency, tool usage, and operation logs. Includes tool life management, maintenance alerts, and spindle speed adjustment.

• CCD Vision Automatic Calibration System
  High-speed CCD system with cutting path simulation for precise programming. Full-board scanning and offline programming improve efficiency and reduce setup time. Automatic recognition of cutting paths with selectable line colors for easy identification.

• Offline Programming & Full-Sheet Scanning
  Edit cutting programs offline and directly import to the machine. Scan entire PCBs to quickly modify paths, improving programming efficiency.

• High-Speed Precision Spindle
  Imported high-speed spindle with low cutting stress, smooth edges, and high precision. Supports spindle speeds up to 80,000 rpm.

• Maintenance Reminder
  Configurable alerts for spindle maintenance, tool replacement, and dust filter cleaning to ensure high uptime.

• Quick Line Change
  Recall existing programs to avoid fixture errors and enable fast changeovers, improving production flexibility.

Application Cases

Specification

Model	GAM320A
Valid cutting size	350*300mm
Cutting function	Tweening to straight line, L Shape, U Shape, Circle, and Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec, Z: 600mm/sec
Max’s moving trip	X: 810mm, Y: 315mm, Z: 90mm
Spindle’s speed	MAX60,000rpm (Adjustable)
Cutting speed	1-100mm/s (Adjustable)
Operation system	Windows10
The program teaching method	Intuitive teaching by CCD color image input
Program backup	USB data transfer
Control method	Precious multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling bit	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 2.2KW Single-phase
Pneumatic pressure requirement	0.6MPa, 75L/min
Weight(W*D*H)	1285*1340*1490mm
Weight	530KG
Dust Collector	TS200

Q1: What types of PCBs can the GAM320A handle?

It can process PCBs of nearly any shape, including high-density or irregular boards, while minimizing stress on sensitive components.

Q2: How does the CCD vision system improve accuracy?

The high-speed CCD detects board offsets and automatically adjusts cutting paths, ensuring precise and repeatable routing.

Q3: Can the machine reduce production idle time?

Yes. Dual worktables allow simultaneous loading and routing, while tables can be combined for oversized boards, significantly improving line efficiency.

Q4: How does the spindle protect PCBA components?

The precision spindle applies minimal cutting stress and is ESD-safe, reducing the risk of static or mechanical damage.

Q5: What software features assist with programming and operation?

Offline programming, full-board scanning, cutting path simulation, and selectable cutting line colors streamline programming and improve operational efficiency.

Q6: How is maintenance managed?

Built-in reminders for spindle checks, tool replacement, and dust filter cleaning help prevent unexpected downtime and extend tool life.

Q7: Can the GAM320A integrate into automated production lines?

Yes. Optional MES connectivity, dual spindles, and safety upgrades allow seamless integration into modern SMT lines.

Q8: What optional features enhance flexibility and safety?

Available options include safety light curtains, broken tool detection, spindle diameter monitoring, upper/lower dust collectors, dual spindles, and MES integration for advanced traceability and operational control.
