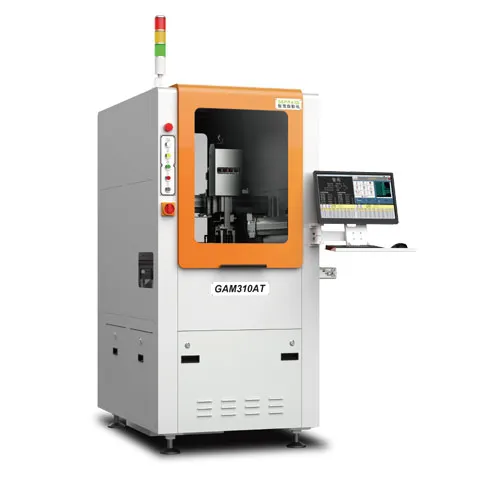

GAM310AT In-Line Automatic PCB Depaneling Machine

Description

The GAM310AT is a high-performance in-line PCB depaneling machine designed for small-format boards, such as those used in mobile devices and miniature assemblies. With a valid cutting area of 200×180mm, it handles compact PCBs efficiently while occupying minimal production line space—less than 840mm in length—making it ideal for space-constrained manufacturing environments.

Equipped with a high-speed CCD vision system, the GAM310AT automatically corrects alignment errors and ensures precise routing for each board. Its ESD-protected spindle with auto tool change protects sensitive components from static damage and allows for continuous, reliable operation.

The dual-head loading/unloading design shortens cycle times to under 12 seconds, enhancing throughput and overall line productivity. Optional upgrades, such as a laser height measurement module, barcode scanning, milling tool diameter detection, and customized MES integration, provide advanced traceability and smart factory capabilities.

Compact yet powerful, the GAM310AT improves efficiency, reduces fixture costs, and delivers accurate, low-stress PCB separation for modern SMT lines.

Key Features

• CCD Vision Alignment System
  High-speed vision system automatically adjusts for PCB offsets. Offline programming and full-sheet scanning improve cutting path setup efficiency.

• High-Speed Precision Spindle
  Low-stress routing with smooth edges. Spindle speeds up to 80,000 rpm ensure high-precision cutting.

• Patented Floating Brush
  Reduces stress on the board during cutting and allows multi-stage milling, extending tool life.

• Dual Loading/Unloading Heads
  Enables fast board handling with cycles under 12 seconds, increasing production efficiency.

• Laser Height Verification
  An optional laser module ensures PCBAs are correctly positioned, preventing misalignment and reducing board damage.

• Maintenance Reminder System
  Configurable alerts for tool maintenance, spindle checks, and dust filter cleaning improve uptime and reliability.

• Compact Footprint
  Less than 840mm in length, ideal for tight production spaces without compromising performance.

• Smart Factory Integration
  Optional MES connectivity, barcode reading, and milling tool diameter detection for traceability and automated workflow management.

Application Case

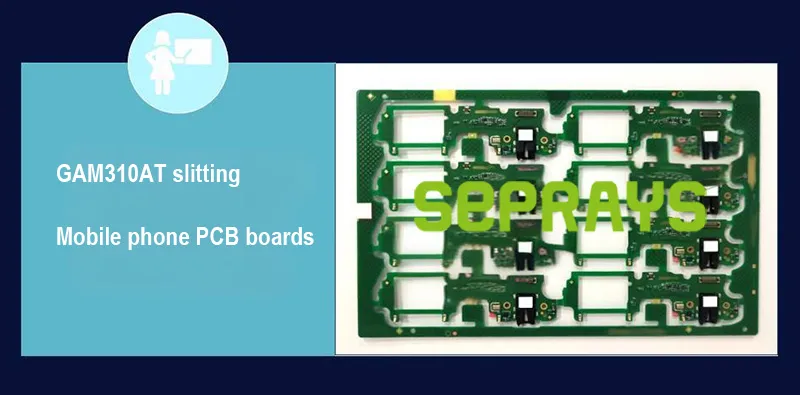

The GAM310AT is used to cut a mobile phone PCBA board, as shown below:

Specification

Model	GAM310AT
Valid cutting size	200*180mm
Loading method	Track delivery
Unloading method	Belt delivery or track delivery
Transfer method	Vacuum nozzle absorption
Movement direction	Left to right or right to left
Cutting function	Tweening to a straight line, L shape, U shape, Circle, Arc
Process table	Dual tables
Repeat precision	±0.01mm
Cutting precision	±0.05mm
Max moving speed	XY: 1000mm/sec, Z: 800mm/sec
Spindle’s speed	MAX: 60000rpm
Tool change type	Auto tool change
Cutting speed	1-100mm/s
Operating system	Windows10
The program teaching method	Intuitive teaching by CCD color image input
Control method	Precision multi-axis control system
XYZ axis driving mode	AC Servo motor
Size of milling tool	0.8-3.0mm
Voltage/Power requirement	AC220V 50/60Hz 4KW Single-phase
Pneumatic pressure requirement	0.6MPa, 160L/min
Dimensions(W*D*H)	1005*1450*1750mm
Weight	600kg
Dust collector	TS300L

Q1: What PCB sizes can the GAM310AT handle?

The GAM310AT supports small-format PCBs up to 200×180mm, making it ideal for mobile, compact, or high-density boards without requiring large fixtures.

Q2: How does the CCD vision system improve cutting precision?

The high-speed CCD alignment detects board offsets in real time and automatically adjusts the cutting path, ensuring consistent and accurate routing even at high speeds.

Q3: Is the machine safe for sensitive PCBA components?

Yes. The ESD-protected spindle minimizes static risks, while the low-stress routing design prevents mechanical damage to delicate components.

Q4: How fast is the loading and unloading cycle?

With dual-head loading and unloading, the cycle time is less than 12 seconds, allowing rapid handling and improved production throughput.

Q5: What features help prevent misalignment during routing?

Optional laser height measurement verifies the correct placement of PCBs, reducing errors caused by misaligned boards or debris on small-format PCBs.

Q6: How is dust managed during operation?

The system uses a high-efficiency dust collection setup combined with a patented floating brush to remove debris effectively and maintain a clean, safe working environment.

Q7: Can the GAM310AT integrate with existing production lines?

Yes. It supports flexible in-line integration with various loading/unloading methods and optional MES connectivity for smart factory workflow management.

Q8: Are there options for traceability and monitoring?

Optional features include barcode reading, milling tool diameter detection, and MES integration, providing advanced traceability, real-time monitoring, and enhanced process control.
