Description

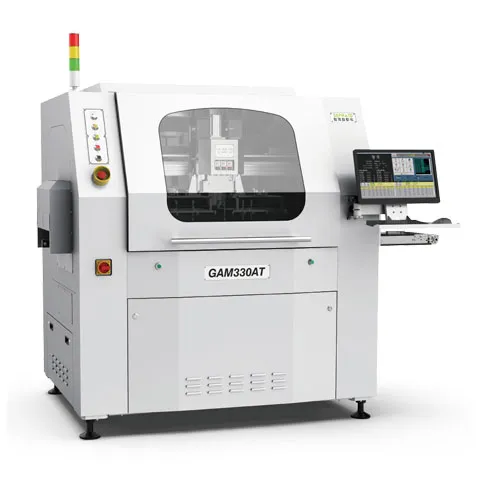

The GAM 330AT In-Line Automatic PCB Depaneling Machine is a high-efficiency, fully automated solution designed for precision cutting, depaneling, and material handling across modern PCB production lines. Capable of automatic loading, sorting, and discharge of both finished and scrap PCBs, it streamlines production while reducing manual labor and improving throughput.
Equipped with a high-speed CCD vision alignment system, the machine ensures precise positioning and automatic offset correction, guaranteeing high-accuracy cutting for a wide range of PCB sizes and shapes. Its high-speed spindle delivers low-stress, clean cuts, while the patented flexible cleaning brush extends milling tool life through segmented use.
The GAM 330AT supports dual-stage motion, allowing simultaneous depaneling and board placement, effectively reducing idle time and boosting production efficiency. Its versatility accommodates small, multi-connected PCBs—ideal for mobile phones, digital cameras, GPS devices, PDAs, and modules—as well as larger boards for applications such as digital TVs, PCs, workstations, and servers.
Optional enhancements include clamping modules, laser height checking, barcode readers, milling tool diameter detection, and custom MES integration. Dual-spindle variants such as the GAM320AD and GAM340AD further increase throughput for high-volume operations.
Key Features
-
Maintenance Reminders: Configurable schedules for maintenance and dust filter cleaning to ensure reliable operation.
-
Quick Line Changeovers: Existing programs can be recalled to avoid fixture errors and reduce downtime.
-
High Software Reliability: Over 30 years of independent software development ensure stable, bug-free performance.
-
Robust Construction: One-piece welded design and cast aluminum body resist deformation, oxidation, and deflection for long-term precision.
-
Advanced Dust Collection: High-power dust collector with HEPA filtration and negative pressure monitoring, combined with the patented floating brush (Patent ZL201721620742.X) for efficient dust management.
-
Centralized Control System: Optional centralized management via IP network and remote device monitoring through an obile app.
Application Cases
A real-world example of an online, fully automatic PCB splitter in action:
Specification
| Model | GAM330AT |
|---|---|
| Valid cutting size | 350*300mm |
| Loading method | Track delivery |
| Unloading method | Belt delivery or track delivery |
| Transfer method | Vacuum nozzle absorption |
| Movement direction | Left to right or right to left |
| Cutting function | Tweening to a straight line, L shape, U shape, Circle, Arc |
| Process table | Dual tables |
| Repeat precision | ±0.01mm |
| Cutting precision | ±0.05mm |
| Max moving speed | XY: 1000mm/sec, Z: 800mm/sec |
| Max’s moving trip | X: 950mm, Y: 440mm, Z: 90mm |
| Spindle’s speed | MAX: 60000rpm (Adjustable) |
| Tool change type | Auto tool change |
| Cutting speed | 1-100mm/s (Adjustable) |
| Operating system | Windows 10 |
| Program teaching mode | Intuitive teaching by CCD color image input |
| Program backup | USB data transfer |
| Control method | Precision multi-axis control system |
| XYZ axis driving mode | AC Servo motor |
| Size of milling tool | 0.8-3.0mm |
| Voltage/Power requirement | AC220V 50/60Hz 4KW Single-phase |
| Pneumatic pressure requirement | 0.6MPa, 160L/min |
| Dimensions(W*D*H) | 2105*1445*1705mm |
| Weight | 800kg |
| Collector | TS300L |
What PCB sizes can the GAM 330AT handle?
The machine accommodates small multi-connected PCBs (e.g., mobile devices, PDAs) as well as larger boards for TVs, PCs, workstations, and servers.
Does the GAM 330AT support high-volume production?
Yes, with dual-stage motion and optional dual-spindle models like GAM320AD and GAM340AD, it significantly increases throughput.
How does the machine ensure cutting precision?
The high-speed CCD vision system automatically corrects positioning offsets, and the spindle provides low-stress, accurate cuts.
What measures protect PCBAs from damage during cutting?
The system uses an ESD-protected high-speed spindle, and its patented flexible cleaning brush reduces milling stress on the boards.
Can the machine be integrated into existing production lines?
Absolutely. The GAM 330AT supports MES integration, barcode tracking, and offers multiple optional modules to align with upstream and downstream processes.
How does the GAM 330AT manage dust and debris?
It features a high-power HEPA-filtered dust collector, negative pressure monitoring, and a floating brush system for efficient dust removal.
Is the maintenance of the machine simple?
Yes, configurable maintenance reminders, dust filter schedules, and quick line change capabilities make upkeep straightforward.
Can the machine be monitored remotely?
Yes, with the optional centralized control system and mobile app, operators can monitor real-time machine status and manage production remotely.
